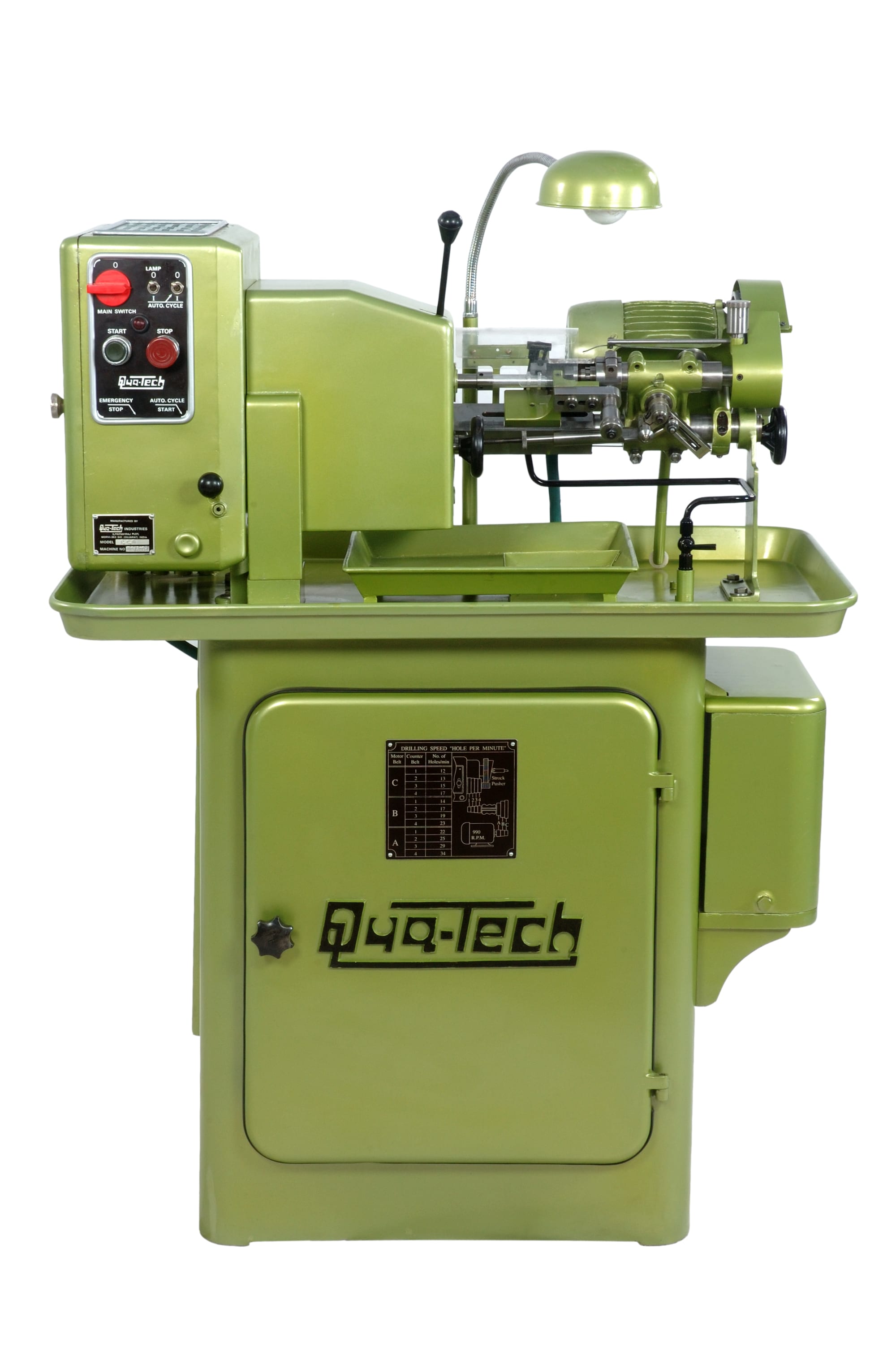

PCD Drill Machine Model:- D-2
Drill Capacity | 0.7 to 4 mm Dia. & 10 mm Length |
Max. Job Dia& Length | 50 mm Dia. , 100mm Length |
Work Spindle rpm | 3000 to 12000 RPM |
Maximium PCD | 40 mm |
Electrical load | 0.6 Kw , 3 Phase |
Dimension & Weight | 1000x650x1300 mm & 225 Kg. |
