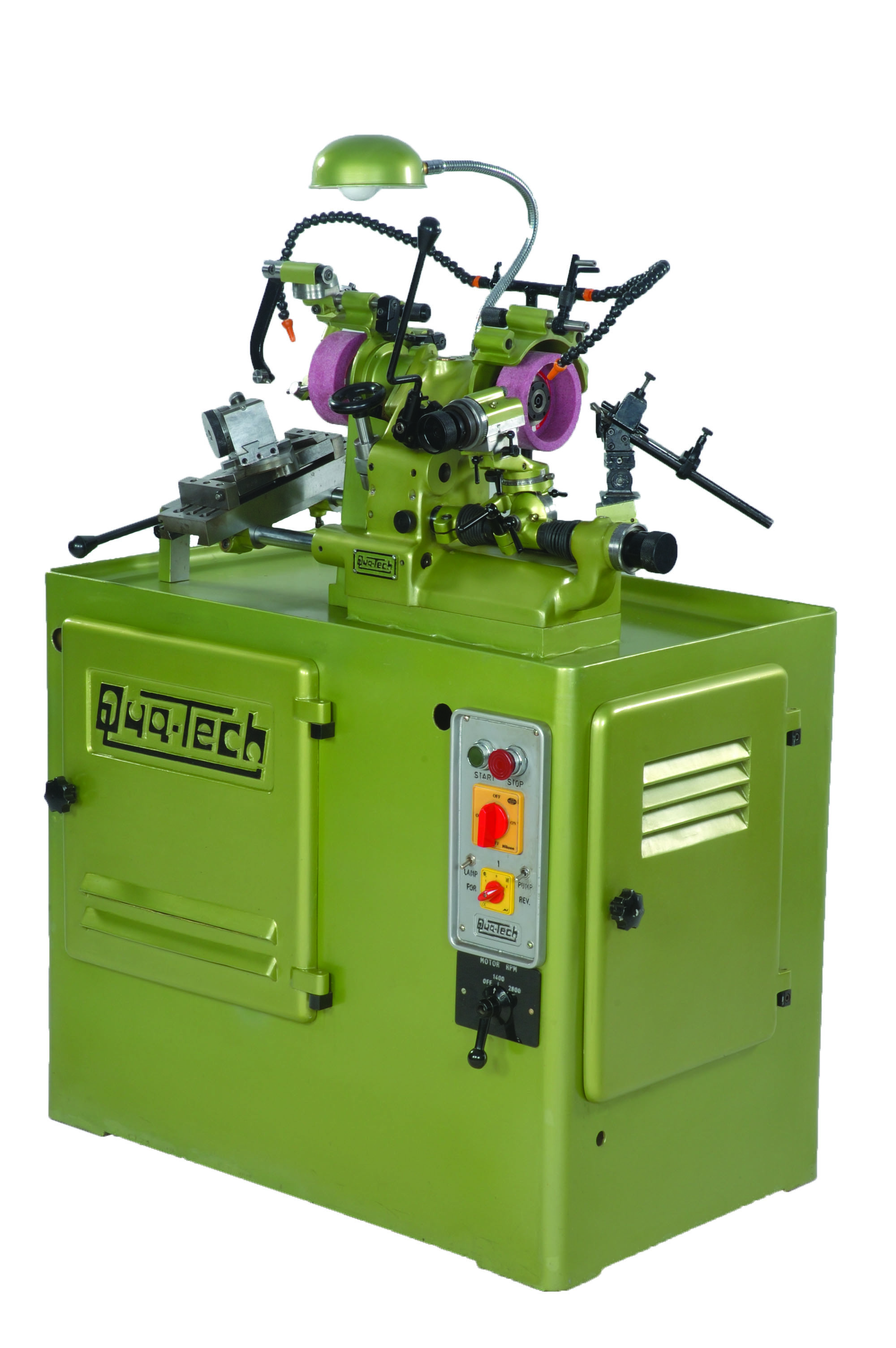

Universal Tool & Cutter Grinder Machine Model:- TG - 2
Engraving Tool Grinder Attach. | on Right Side slide of m/c. |
Drill ReshapningAttachement | 3mm to 25 mm Dia. |
Square & Round Tool Front, Top, Face, | |
both side &Endmill Face Grinder | Capacity 6 to 25 mm Dia. |
Slotting Cutter Grinder Attachment | Capacity 60 mm to 200 mm Dia. |
Square & Round Tool Concave & | 1 to 100 mm Radius |
Convex Grinding attachment capacity | & 1 to 12 mm Dia. |
Grinding Cup Wheel Size | 125x50x20 mm Thick |
Spindle RPM (2 Speed Motor) | 2800 - 5600 RPM |
Electric Load | 1 KW , 3 Phase |
Dimension & Weight | 1100 x 600 1250 mm, 250 Kg. |
